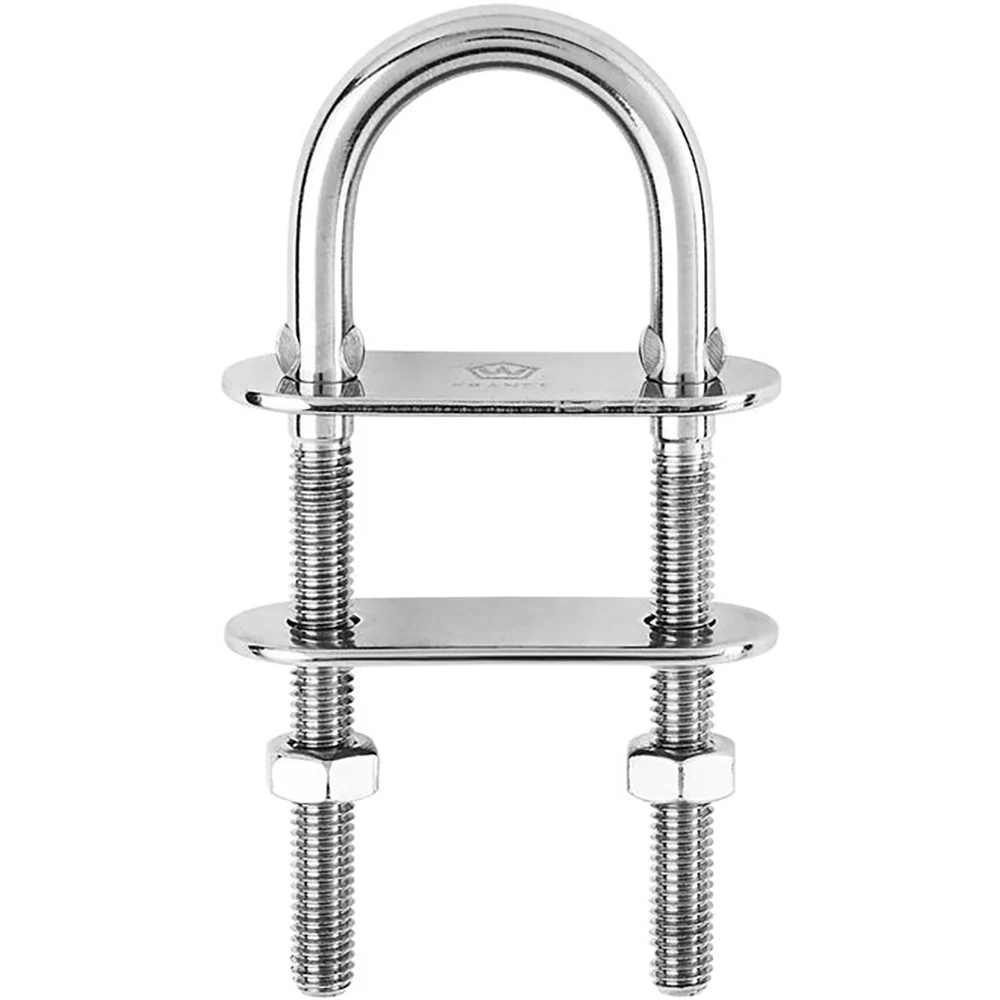

Wichard U-Bolt Pad Eye - 12mm Diameter - 15/32" - 110mm Length - 4-21/64" [6516W]
U-Bolt Pad Eye - 12mm Diameter - 15/32" - 110mm Length - 4-21/64"
Features:
- Fully drop forged product with high-quality stainless steel
- Outstanding working and breaking loads
- For any kind of fastening applications (shrouds, lifelines, blocks...)
- Delivered with bolts and counter-plate
- Max tightening torque: 60 Nm
Applications:
- Various fastening applications: shrouds, lifelines, blocksā¦
Specifications:
- Materials: 316L stainless steel grade
- Working load: (lb) 14100 / (kg) 6400Ā
- Breaking load: (lb) 22040 / (kg) 10000Ā
- Weight: (lb) 0.703 / (g) 319Ā
Dimensions:
- A: (inch) 1 47/64" / (mm) 44Ā
- B: (inch) 1 11/32" / (mm) 34Ā
- C: (inch) 1 31/32" / (mm) 50Ā
- D diameter: (inch) 15/32" / (mm) 12Ā
- Length: (inch) 4 21/64" / (mm) 110Ā
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
*Sold as an Individual
Quick Guide (pdf)
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Wichard U-Bolt Pad Eye - 12mm Diameter - 15/32" - 110mm Length - 4-21/64" [6516W]
Wichard U-Bolt Pad Eye - 12mm Diameter - 15/32" - 110mm Length - 4-21/64" [6516W]
U-Bolt Pad Eye - 12mm Diameter - 15/32" - 110mm Length - 4-21/64"
Features:
- Fully drop forged product with high-quality stainless steel
- Outstanding working and breaking loads
- For any kind of fastening applications (shrouds, lifelines, blocks...)
- Delivered with bolts and counter-plate
- Max tightening torque: 60 Nm
Applications:
- Various fastening applications: shrouds, lifelines, blocksā¦
Specifications:
- Materials: 316L stainless steel grade
- Working load: (lb) 14100 / (kg) 6400Ā
- Breaking load: (lb) 22040 / (kg) 10000Ā
- Weight: (lb) 0.703 / (g) 319Ā
Dimensions:
- A: (inch) 1 47/64" / (mm) 44Ā
- B: (inch) 1 11/32" / (mm) 34Ā
- C: (inch) 1 31/32" / (mm) 50Ā
- D diameter: (inch) 15/32" / (mm) 12Ā
- Length: (inch) 4 21/64" / (mm) 110Ā
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
*Sold as an Individual
Quick Guide (pdf)
$104.89
