Maretron NMEA 2000 Micro/Mid Powertap Tee - FM (left)/ 5 Meter 4 Wire Power drop (bottom)/FM (right) CF-SPWR05-CF

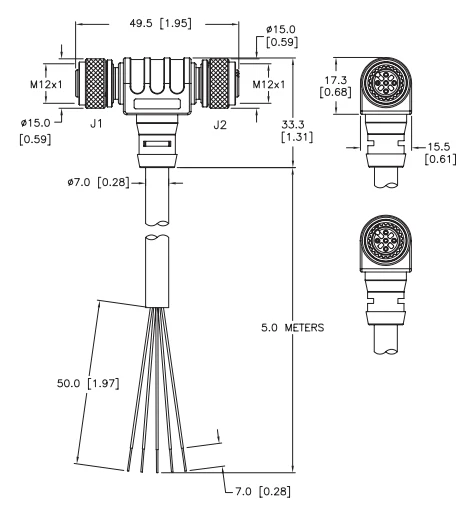

Micro/Mid Powertap Tee - FM (left)/ 5 Meter 4 Wire Power drop (bottom)/FM (right)
A Powertap Tee is connected to a network backbone just like any Tee but rather than connecting a device their purpose is to provide ābusā power. Maretron Powertap Tee uniquely provides two power inputs permitting doubled power provision for devices.Ā
Yellow cable indicates power and canāt be confused with gray network cable.
NOTE: This powertap tee has female connectors on both sides. Ā You will need two male terminators on the network backbone.

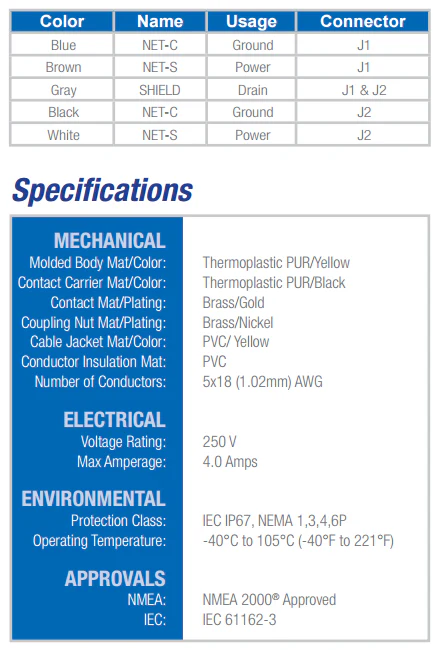

FEATURES
- Molded Body Mat/Color: Thermoplastic PUR/Yellow
- Contact Carrier Mat/Color: Thermoplastic PUR/Black
- Contact Mat/Plating: Brass/Gold
- Coupling Nut Mat/Plating: Brass/Nickel
- Cable Jacket Mat/Color: PVC/ Yellow
- Conductor Insulation Mat: PVC
- Number of Conductors: 5x18 (1.02mm) AWG
ELECTRICAL:
- Voltage Rating: 250 V
- Max Amperage: 4.0 Amps
ENVIRONMENTAL:
- Protection Class: IEC IP67, NEMA 1,3,4,6P
- Operating Temperature: -40Ā°C to 105Ā°C (-40Ā°F to 221Ā°F)
APPROVALS:
- NMEA: NMEA 2000Ā® Approved
- IEC: IEC 61162-3
Ā
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Maretron NMEA 2000 Micro/Mid Powertap Tee - FM (left)/ 5 Meter 4 Wire Power drop (bottom)/FM (right) CF-SPWR05-CF
Maretron NMEA 2000 Micro/Mid Powertap Tee - FM (left)/ 5 Meter 4 Wire Power drop (bottom)/FM (right) CF-SPWR05-CF
Micro/Mid Powertap Tee - FM (left)/ 5 Meter 4 Wire Power drop (bottom)/FM (right)
A Powertap Tee is connected to a network backbone just like any Tee but rather than connecting a device their purpose is to provide ābusā power. Maretron Powertap Tee uniquely provides two power inputs permitting doubled power provision for devices.Ā
Yellow cable indicates power and canāt be confused with gray network cable.
NOTE: This powertap tee has female connectors on both sides. Ā You will need two male terminators on the network backbone.
FEATURES
- Molded Body Mat/Color: Thermoplastic PUR/Yellow
- Contact Carrier Mat/Color: Thermoplastic PUR/Black
- Contact Mat/Plating: Brass/Gold
- Coupling Nut Mat/Plating: Brass/Nickel
- Cable Jacket Mat/Color: PVC/ Yellow
- Conductor Insulation Mat: PVC
- Number of Conductors: 5x18 (1.02mm) AWG
ELECTRICAL:
- Voltage Rating: 250 V
- Max Amperage: 4.0 Amps
ENVIRONMENTAL:
- Protection Class: IEC IP67, NEMA 1,3,4,6P
- Operating Temperature: -40Ā°C to 105Ā°C (-40Ā°F to 221Ā°F)
APPROVALS:
- NMEA: NMEA 2000Ā® Approved
- IEC: IEC 61162-3
Ā
Original: $42.95
-70%$42.95
$12.88Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Micro/Mid Powertap Tee - FM (left)/ 5 Meter 4 Wire Power drop (bottom)/FM (right)
A Powertap Tee is connected to a network backbone just like any Tee but rather than connecting a device their purpose is to provide ābusā power. Maretron Powertap Tee uniquely provides two power inputs permitting doubled power provision for devices.Ā
Yellow cable indicates power and canāt be confused with gray network cable.
NOTE: This powertap tee has female connectors on both sides. Ā You will need two male terminators on the network backbone.
FEATURES
- Molded Body Mat/Color: Thermoplastic PUR/Yellow
- Contact Carrier Mat/Color: Thermoplastic PUR/Black
- Contact Mat/Plating: Brass/Gold
- Coupling Nut Mat/Plating: Brass/Nickel
- Cable Jacket Mat/Color: PVC/ Yellow
- Conductor Insulation Mat: PVC
- Number of Conductors: 5x18 (1.02mm) AWG
ELECTRICAL:
- Voltage Rating: 250 V
- Max Amperage: 4.0 Amps
ENVIRONMENTAL:
- Protection Class: IEC IP67, NEMA 1,3,4,6P
- Operating Temperature: -40Ā°C to 105Ā°C (-40Ā°F to 221Ā°F)
APPROVALS:
- NMEA: NMEA 2000Ā® Approved
- IEC: IEC 61162-3
Ā
