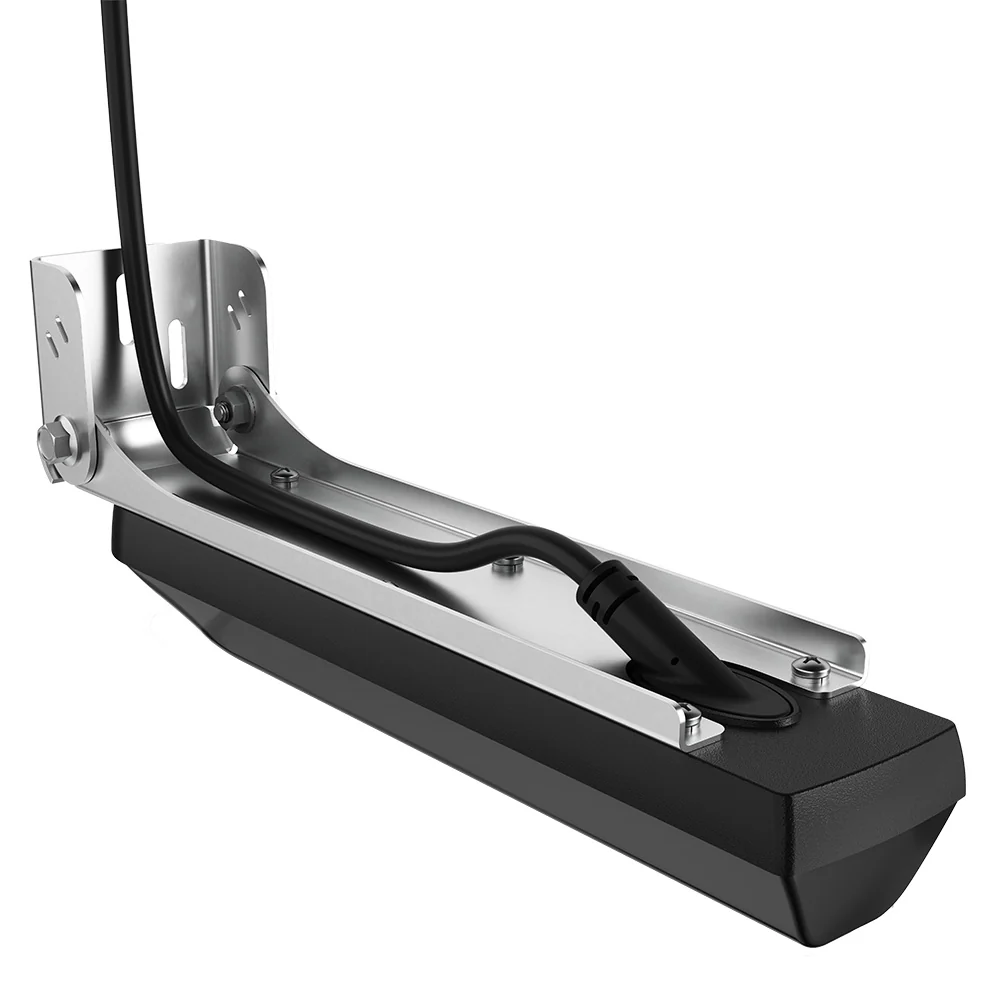

Lowrance Active Imaging HD 3-in-1 FishReveal Transducer [000-16060-001]

Product image 1

Lowrance Active Imaging HD 3-in-1 FishReveal Transducer [000-16060-001]

Lowrance Active Imaging HD 3-in-1 FishReveal Transducer [000-16060-001]

Active Imaging HDā„¢ 3-in-1 FishReveal Transducer

Step up to the ultimate fishfinding clarity with new, high-definition Active Imagingā„¢ HD 3-in-1 sonar. Get the most precise images of fish and structure from LowranceĀ® CHIRP sonar, high-frequency (up to 1.2MHz) SideScan/DownScan Imagingā„¢, plus FishRevealā„¢ DownScan and a new FishReveal SideScan* view, making fish identification easy.

*requires S3100 sonar module for Fish Reveal SideScan

Features:

  • High definition (up to 1.2MHz) SideScan and DownScan Imaging deliver the most precise images of fish and structure
  • Lowrance CHIRP with superb clarity and target separation
  • FishRevealā„¢ with new SideScan* view as well as DownScan
  • Supports Medium and High CHIRP (83/200kHz) and 455/700/1000/1200 kHz frequencies
  • Smart transducer design boosts signal clarity
  • Compatible directly with Lowrance HDS PRO or with an S3100 module with HDS LIVE, HDS Carbon, and Elite FS.

*requires S3100 sonar module and relevant transducer for Fish Reveal SideScan on HDS PRO

Specifications:

  • Cable Length (Feet): 25'
  • Chirp: Medium/High
  • Imagining: Standard/Down/Side
  • Mounting Style: Transom
  • Pins: 9
  • Speed Included: No
  • Temperature: Yes
  • Box Dimensions: 4"H x 10"W x 14"L WT: 4.35 lbs
  • UPC: 9420064130344
$122.38

Original: $407.95

-70%
Lowrance Active Imaging HD 3-in-1 FishReveal Transducer [000-16060-001]ā€”

$407.95

$122.38

Product Information

Shipping & Returns

Description

Active Imaging HDā„¢ 3-in-1 FishReveal Transducer

Step up to the ultimate fishfinding clarity with new, high-definition Active Imagingā„¢ HD 3-in-1 sonar. Get the most precise images of fish and structure from LowranceĀ® CHIRP sonar, high-frequency (up to 1.2MHz) SideScan/DownScan Imagingā„¢, plus FishRevealā„¢ DownScan and a new FishReveal SideScan* view, making fish identification easy.

*requires S3100 sonar module for Fish Reveal SideScan

Features:

  • High definition (up to 1.2MHz) SideScan and DownScan Imaging deliver the most precise images of fish and structure
  • Lowrance CHIRP with superb clarity and target separation
  • FishRevealā„¢ with new SideScan* view as well as DownScan
  • Supports Medium and High CHIRP (83/200kHz) and 455/700/1000/1200 kHz frequencies
  • Smart transducer design boosts signal clarity
  • Compatible directly with Lowrance HDS PRO or with an S3100 module with HDS LIVE, HDS Carbon, and Elite FS.

*requires S3100 sonar module and relevant transducer for Fish Reveal SideScan on HDS PRO

Specifications:

  • Cable Length (Feet): 25'
  • Chirp: Medium/High
  • Imagining: Standard/Down/Side
  • Mounting Style: Transom
  • Pins: 9
  • Speed Included: No
  • Temperature: Yes
  • Box Dimensions: 4"H x 10"W x 14"L WT: 4.35 lbs
  • UPC: 9420064130344
