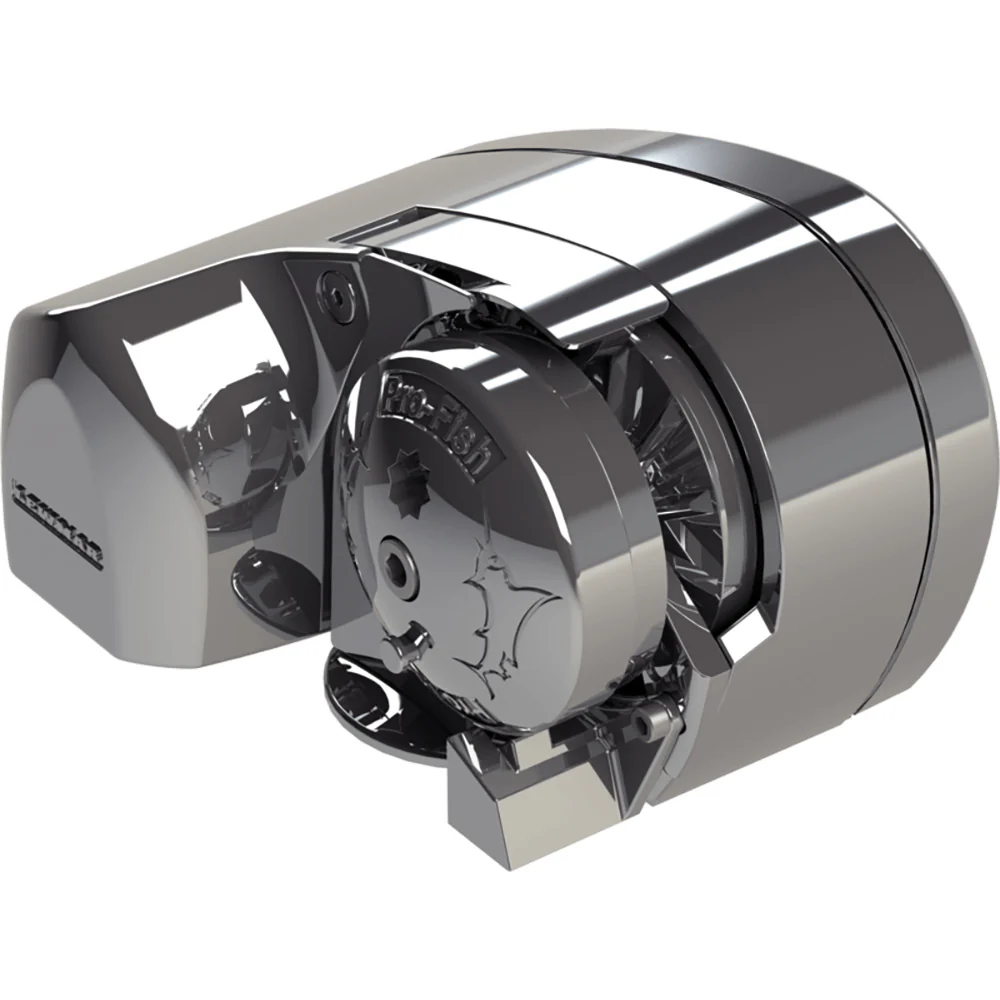

Pro-Fish 700 Windlass - 12V

The Lewmar Pro-Fish model is the ultimate windlass for fishermen.  The Pro-Fish has an automatic freefall that allows you to pull right up over a wreck or ledge, and drop anchor with speed and precision.  No more running your motor or wasting fuel while you hover fish.  You can retrieve your anchor just as easily, with the push of a button.  Plus, the Pro-Fish is DIY-ready and made of durable 316 stainless steel.

This windlass has been specially designed to suit leaded lines up to 7mm in diameter and a revised control arm and new Pro-Guard plate prevent the rope from jumping out of the windlass or snagging during operation.

Features

• Automatic freefall
• Powerful motor providing fast line speed
• Manual emergency recovery equipped all you need is a common 1/2 socket wrench
• Strong  316 stainless steel, including control arm and stripper
• Maximum pulling power: 320kg (700 lb) for the 700 and 454kg (1,000 lb) for the 1000
• Convenient above-deck installation
• 5-year warranty
• For boats up to 12m (38ft)

Technical Specifications:

• Chain Size - 1/4" G4 or BBB
• Rope Size - 1/2" 3-strand or 8-plait
• Motor Voltage - 12 Volt DC
• Motor Power - 500 Watt
• Maximum Pulling Power - 700lb (318kg)
• Maximum Working Load - 175lb  (79.38)
• For boats up to 32' (9.75M)

In the Box:

• Windlass
• Base gasket
• Mounting hardware
• Circuit breaker
• Dual-direction solenoid
• Rocker switch
• Instruction manual

*Sold as an Individual

Specifications:

• Chain - Diameter (Inches): .25
• Freefall: Yes
• Rope Diameter (Inches): .50
• Vertical/Horizontal: Horizontal
• Box Dimensions: 8"H x 11"W x 12"L WT: 20 lbs
• UPC: 743683306860

Owner's Manual (pdf)
