Airmar 200WX NMEA 0183 / 2000® WeatherStation® - (No Relative Humidity) - RS232 - IPX7

Model 44-849-1-01

The cables for the Airmar WeatherStation are options that can be found at this link:

Airmar WeatherStation Cables and Accessories

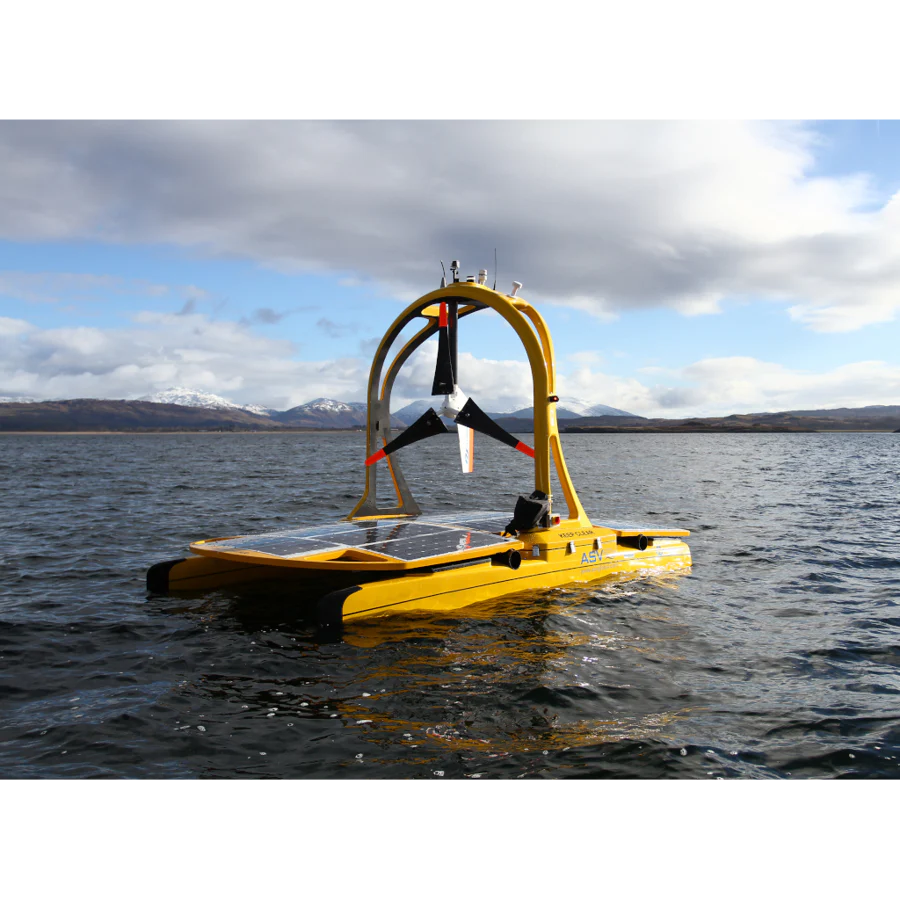

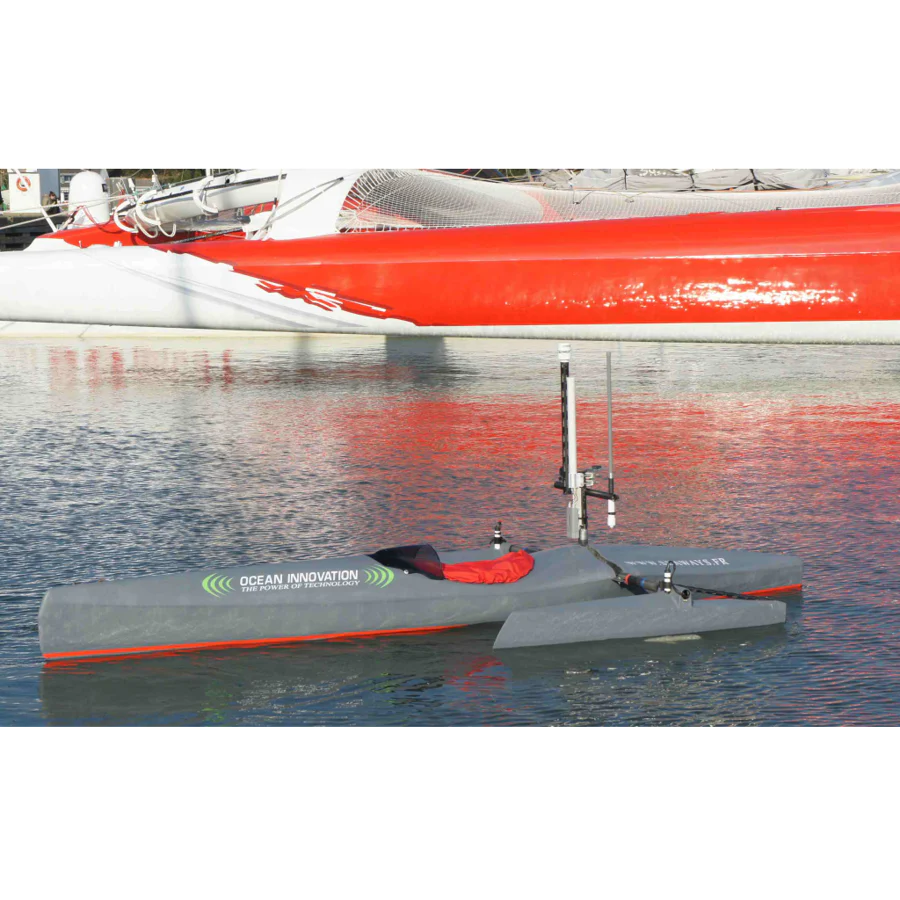

Unmanned Surface Vehicle Monitoring

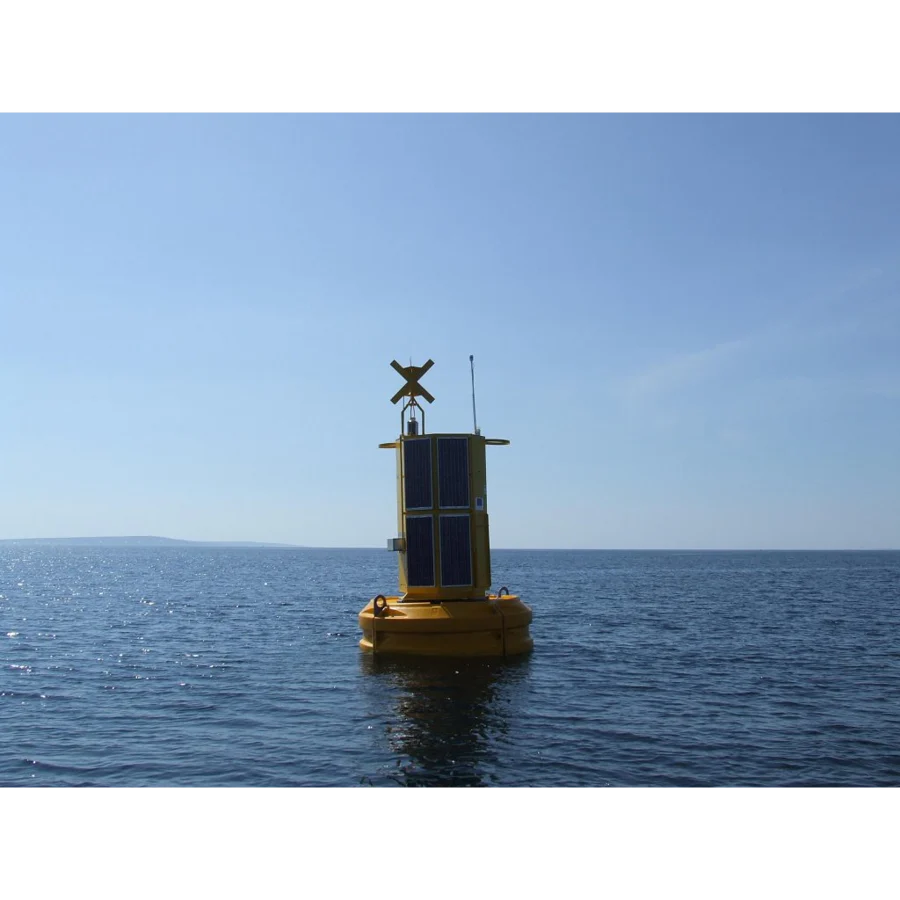

Reliable monitoring systems such as buoys, and USVs enable operational decision-making based on real-time, site-specific data rather than intuition. The highly changeable conditions at sea make offshore operations particularly challenging. Airmar has worked with many autonomous vehicle and buoy OEMs to develop the WeatherStation model 200WX-IPX7 that meets the operational challenges of this extremely harsh environment.

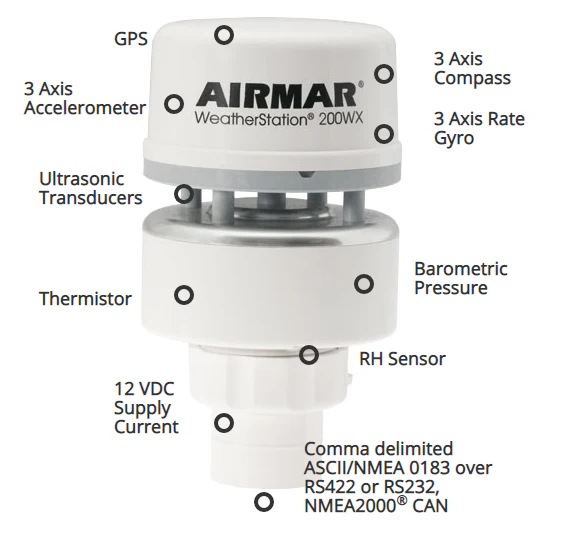

Features

• Ultrasonic measurement of apparent and dynamic true wind speed and direction
• Barometric pressure
• Air and wind chill temperature
• GPS position, speed over ground, course over ground
• Three-axis, solid-state compass with dynamic stabilization
• Three-axis rate gyro supplies rate-of–turn data
• Three-axis accelerometer for best-in-class pitch and roll information
• Housing rated IPX7 for water-ingress protection
• Data output via a single cable (various lengths available)
  • NMEA 0183/ASCII serial data protocol over RS-232 interface
  • NMEA 2000 protocol over CAN

Specifications

Brand: Airmar Technology
Air Temp Accuracy: ±1.1°C at 20°C
Air Temp Range: -40 to 80°C (-40 to 176°F)
Air Temp Resolution: 0.1°C
Barometric Pressure Accuracy: ±0.5 hPa at 25°C (or better)
Barometric Pressure Range: 300 to 1100 hPa
Barometric Pressure Resolution: 0.1 hPa
Certs And Standards: CE, IPX7, RoHS, IEC61000-4-2, IEC60945, IEC60950_1C, IEC60950_22A, EN55022, EN55024, EN14982
Comm Method: NMEA 2000®
Communications Available Hardware Interface: Serial RS-232, Serial RS-422, CAN
Communications Available Protocol: Comma delimited ASCII, NMEA 0183, NMEA 2000
Communications Serial Output Rate: 1 Hz typical. User selectable. 10 Hz maximum recommended
Country of Origin: USA
Display Connector: Cable Required
Exterior Color: White
Exterior Color: White
GPS Position Accuracy: 3 m (10') CEP
Humidity: Optional, Not Available
Mounting Thread: Standard 1”-14 UNS (3/4” NPT optional)
NMEA 2000 LEN: 2
Note: Cables sold separately
Operating Temp Range: -25 to 55°C (-13 to 131°F)
Pitch Roll Accuracy: ±1° in range of ±30°
Pitch Roll Measurement Type: MEMS
Pitch Roll Range: 50°
Power Supply Current: <75 mA (<0.9 W) at 12 VDC
Power Supply Voltage: 9 to 40 VDC
Recommend Use: Marine Mobile or Stationary
Refurbished: No
RoHS Compliant: Yes
Sensor Connector: 10WS
Three Axis Compass Dynamic Heading Accuracy: 2° dynamic heading accuracy
Three Axis Compass Range: 0 to 359.9°
Three Axis Compass Static Heading Accuracy: 1° static heading accuracy
Waterproof Rating: IPX7
Weight: 300 g (0.7 lb.)
Wind Direction Accuracy: ±3° at 10 m/s
Wind Direction Range: 0° to 359.9°
Wind Direction Resolution: 0.1°
Wind Speed Accuracy: 5% at 10 m/s at 4 angles
Wind Speed Calculations: User configurable damping
Wind Speed Range: 0 to 40 m/s (0 to 89 MPH)
Wind Speed Resolution: 0.1 m/
